IZJ Series Horticulture LED Interlighting System



Easy Installation | Ideal for Vining Crops | Red & Blue Spectrum | Supplemental Lights

1、Dasiy Chain

The fixture is designed to simplify the installation process with a plug-and-play connector and flexible cable connections. Ideal for commercial cultivation.

2、Outstanding Efficiency

≥3.3μmol/J System Efficacy through high-performance LED chips.





Anatomy of BATA LED IZJ Series Interlighting Grow Light

3、Convenient Installation

Equipped with hooks and hanging ropes, the hanging can be completed by installing them at the corresponding mounting points.





4、Excellent heat dissipation

Aluminum heat sink provides fast Cooling performance.

Z

50W

Z

100W

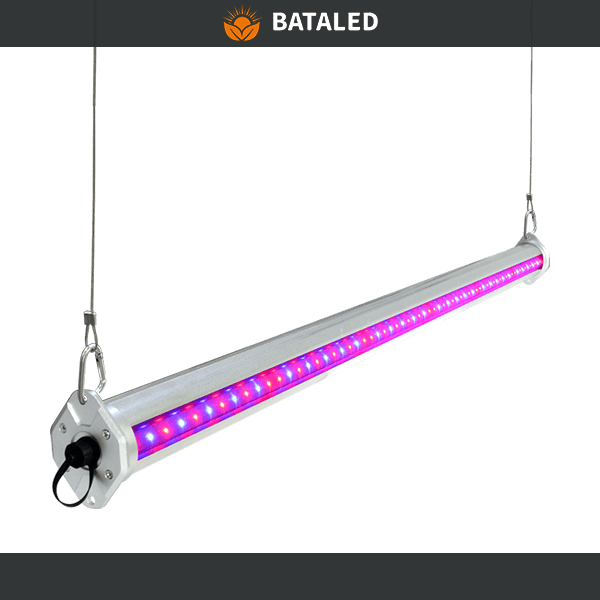

IZJ Series LED Interlighting Grow Light

1 Bar 50W

BATA LED IZJ Series Special for Vines Crops (e.g. Tomatoes, cucumbers, peppers) in Greenhouse.

Efficient supplementary lighting solution. Designed for greenhouse or indoor cultivation.

Specification

Light Output PPF:Certifications:
140±5% µmol/sETL, DLC, SAA, FCC, CE, RoHS
Efficacy:Warranty:
2.8±5% µmol/J5 Year Limited Warranty
Input Power:Spectrum:
50W±5%Red and Blue Spectrum
(Support Spectrum Customization)
LengthWidthHeight
Fixture Dimensions1200mm70mm90mm
47.2"2.8"3.5"
Weight
Light SourceLED
Input VoltageStandard AC 100-277V, 277-480V Optional
Power Factor≥ 0.98
IP RatingIP66
Beam AngleBi-directional 120°
Thermal ManagementPassive heat dissipation design with aluminum fins
Working Temperature-10℃~40℃
Lifetime>50,000hrs

Additional Details

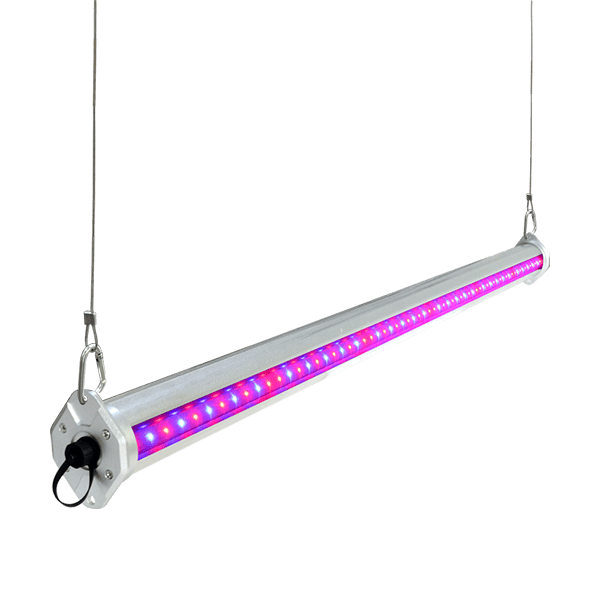

IZJ Series LED Interlighting Grow Light

1 Bar 100W

BATA LED IZJ Series Special for Vines Crops (e.g. Tomatoes, cucumbers, peppers) in Greenhouse.

Efficient supplementary lighting solution. Designed for greenhouse or indoor cultivation.

Specification

Light Output PPF:Certifications:
280±5% µmol/sETL, DLC, SAA, FCC, CE, RoHS
Efficacy:Warranty:
2.8±5% µmol/J5 Year Limited Warranty
Input Power:Spectrum:
100W±5%Red and Blue Spectrum
(Support Spectrum Customization)
LengthWidthHeight
Fixture Dimensions2400mm70mm90mm
94.5"2.8"3.5"
Weight
Light SourceLED
Input VoltageStandard AC 100-277V, 277-480V Optional
Power Factor≥ 0.98
IP RatingIP66
Beam AngleBi-directional 120°
Thermal ManagementPassive heat dissipation design with aluminum fins
Working Temperature-10℃~40℃
Lifetime>50,000hrs

Additional Details

Key Features

Key Features of BATA LED IZJ Series Interlighting Grow Light

Up to 3.3 μmol/J Efficiency

Premium LED technology maximizes energy conversion, delivering high-intensity light (PPFD) and even coverage for vines crops(e.g., tomatoes, cucumbers, and peppers).



Red & Blue Spectrum

Custom-tuned for healthier tomatoes, cucumbers, and peppers and bigger harvests:

  • Red light boosts photosynthesis and increases yields.
  • Blue light improves plant structure and crop quality.



Daisy Chain Connectivity

Easily link multiple lights with cable for Simple group control.

Perfect for commercial greenhouse cultivation – adapts to any layout without complex wiring.



Save 60% on Operating Costs

  • Plug & Play design: Quick setup with no complex installation.
  • Daisy Chain connectivity: Link lights in minutes to slash labor costs.
  • Energy-efficient LEDs: Cut power bills while boosting growth efficiency.





The Feature of Daisy-Chain Design for BATA LED IZJ Series

Daisy-Chain Design

Connect up to 30 strips with plug-and-play connector

The Feature of IP66-Rated for BATA LED IZJ Series

IP66-Rated

High Waterproof and Dustproof performance

The Feature of Wide-Beam Lighting Design for BATA LED IZJ Series

Wide-Beam Lighting Design

Double Side Lighting-Beam angle: Bi-directional 120°

Indoor Cultivation Spectral Distribution Chart for BATA LED IZJ Series

Indoor cultivation spectrum

Greenhouse Cultivation Spectral Distribution Chart for BATA LED IZJ Series

Greenhouse cultivation spectrum(red blue)

ADVANCED GREENHOUSE

SPECTRA

Best Greenhouse Module Supplemental Interlighting Grow Lights.

We’ve developed specially balanced red-blue light recipes to support healthy growth of vining crops like tomatoes, cucumbers, and peppers. Our system uses core wavelengths: 660-680 nm (red) and 440-460 nm (blue), with a few far-red lights at 730 nm.

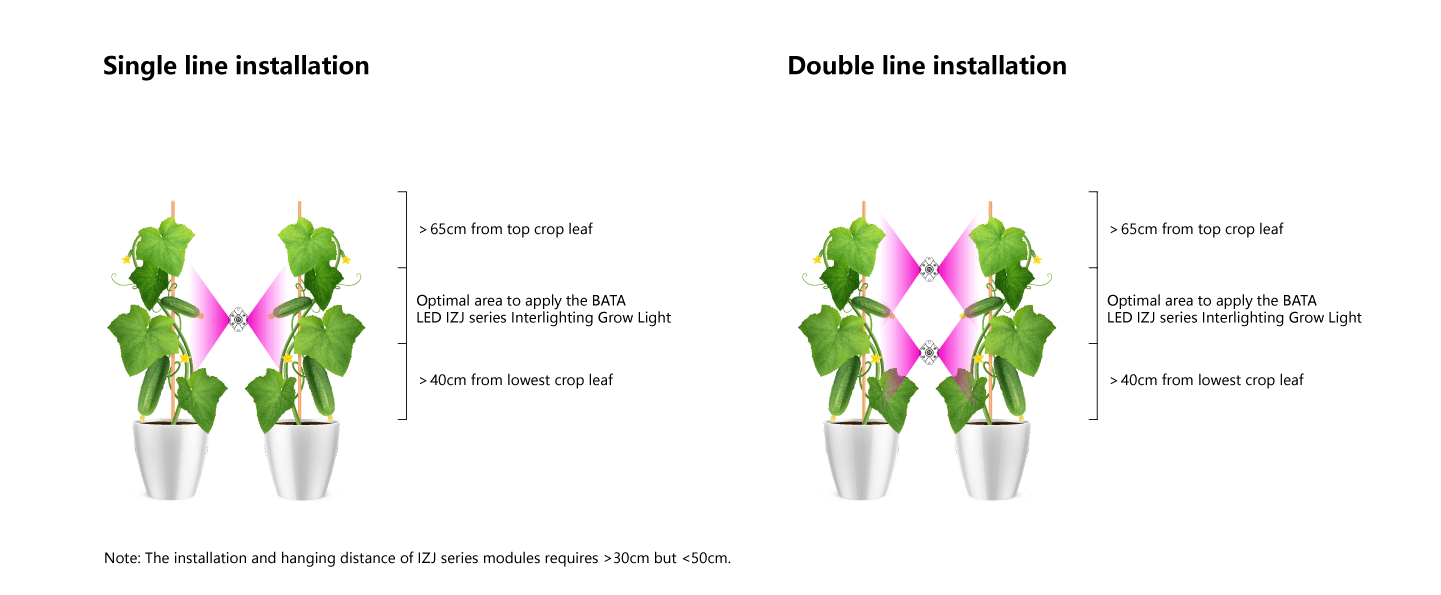

Positioning the grow lights within the canopy of high wire plants to deliver growth-boosting light on the most vital part of the crop. The side-angled light distribution helps leaves absorb energy more effectively, leading to better harvests.

With the IZJ series grow light, we hope to give growers a better understanding of what is horticulture interlighting and help them achieve the best harvest in their greenhouses.

You may also like

Related Lamps for Greenhouse Cultivation

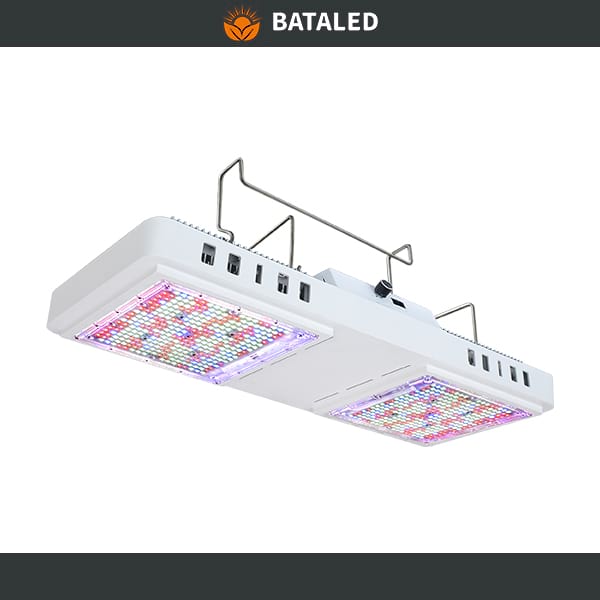

Recommend related products: BATA LED TFDG Series Greenhouse Grow Light 800W

TFDG Series

LED Greenhouse Grow Light

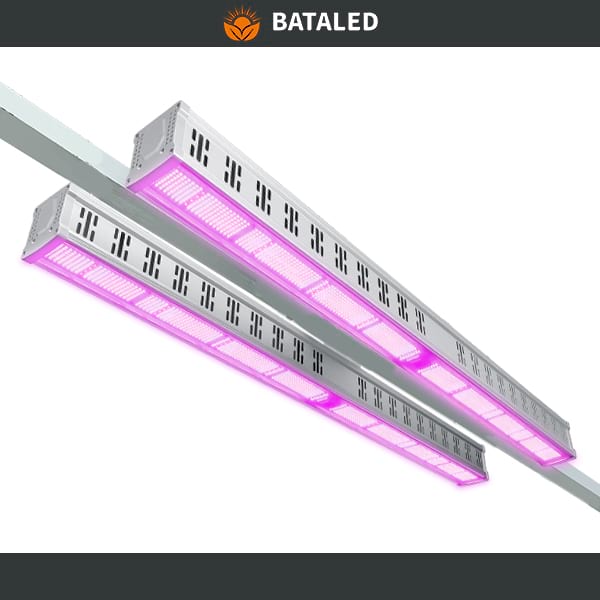

Recommend related products: BATA LED TYDG Series Greenhouse Grow Light 640W

TYDG Series

LED Greenhouse Grow Light

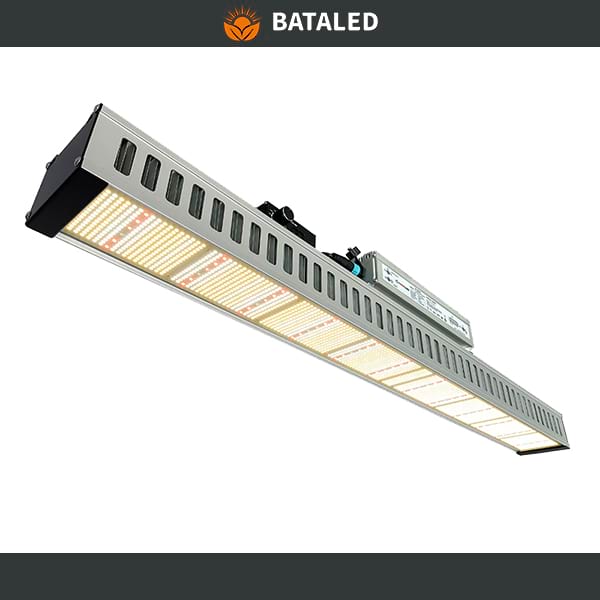

Recommend related products: BATA LED TXDG Series Greenhouse Grow Light 640W

TXDG Series

LED Greenhouse Grow Light

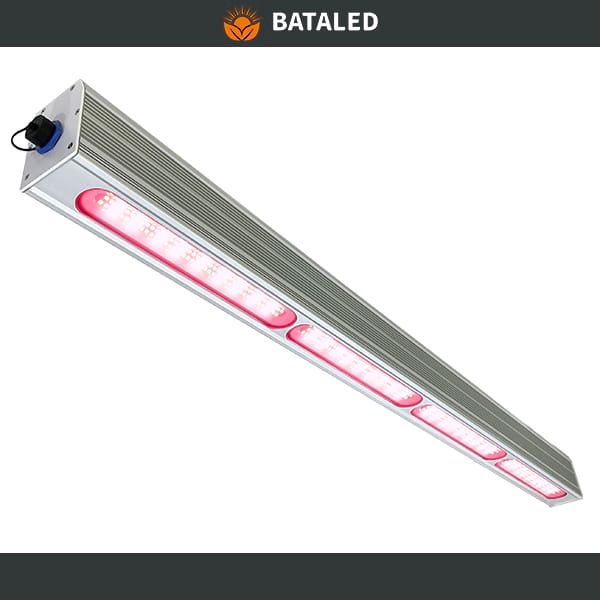

Recommend related products: BATA LED TMDG Series Greenhouse Grow Light 200W

TMDG Series

LED Greenhouse Grow Light

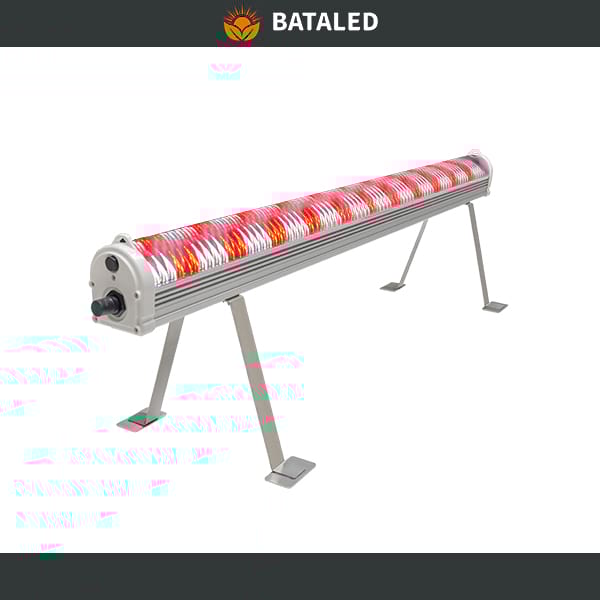

Recommend related products: BATA LED Under Canopy Grow Light Series 120W
